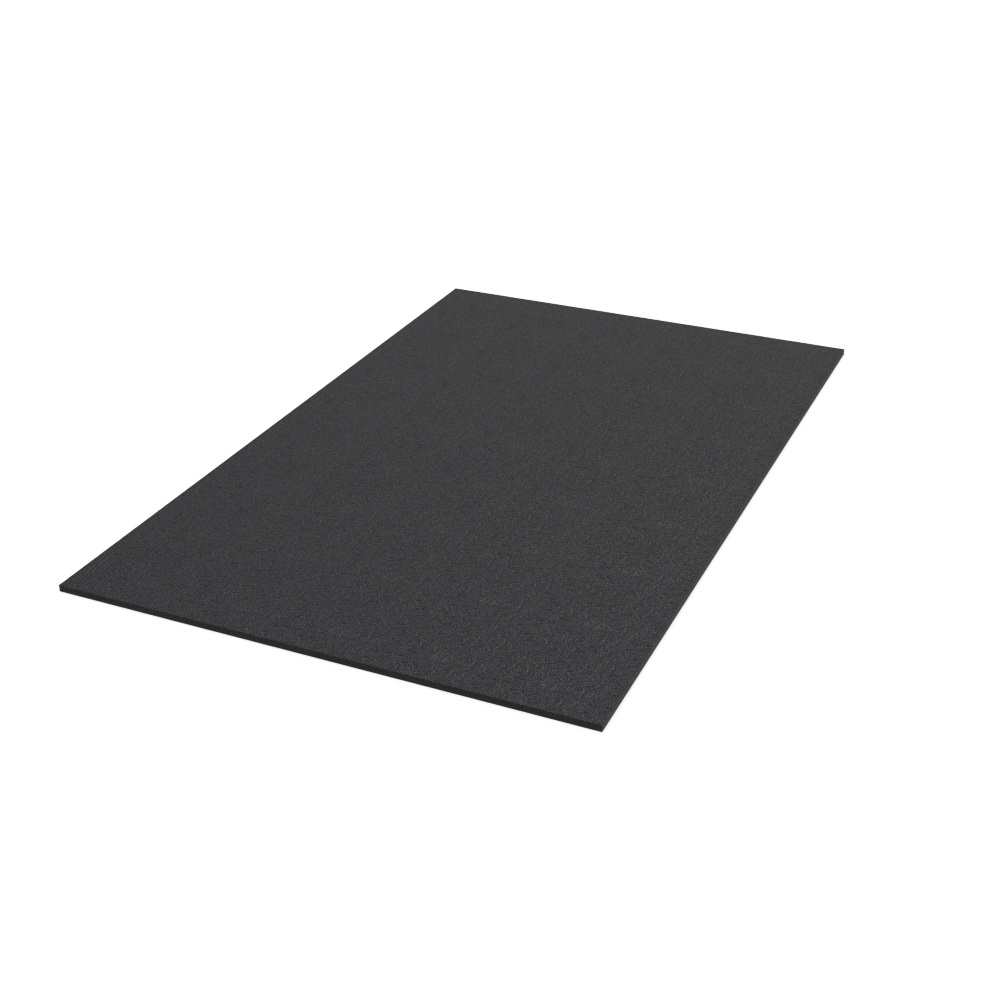

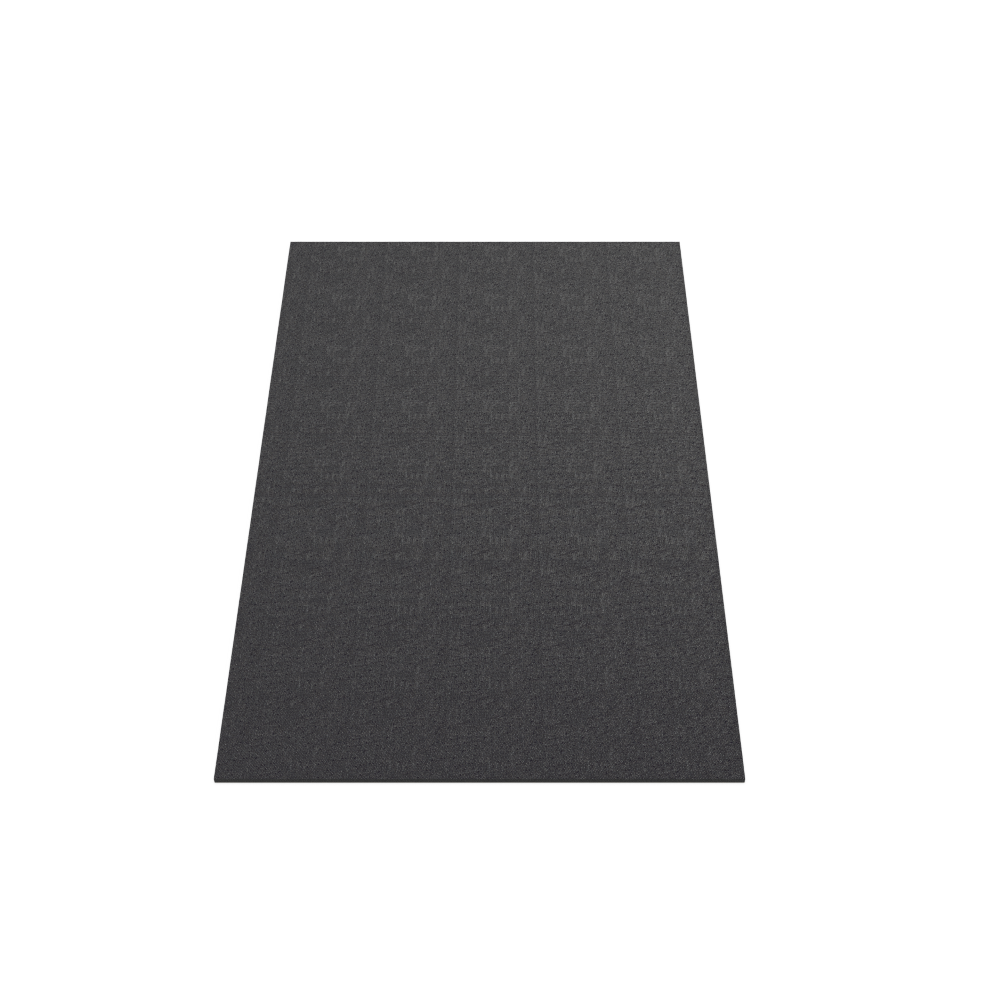

Car Sound Absorption High Density Acoustic Closed Cell Foam

Layer 1: Black non-woven fabric

Layer 2: Closed Cell Foam, 6mm

Layer 3: Kraft paper

Size: 500 mm*800 mm

Total thickness: 6.0 mm

Installation location: Doors, Floor Pan, Roof, Trunk, Wheel Arches

Logo: Printing Your Brand Logo

Email to me

Talk to me

Model: SA-BN

Car Sound Absorption High Density Acoustic Closed Cell Foam

Layer 1: Black non-woven fabric

Layer 2: Closed Cell Foam, 6mm

Layer 3: Kraft paper

Size: 500 mm*800 mm

Total thickness: 6.0 mm

Installation location: Doors, Floor Pan, Roof, Trunk, Wheel Arches

Logo: Printing Your Brand Logo

Contact

Follow:

CGI sound-absorbing materials typically exhibit structural characteristics such as porosity or a fibrous nature. When sound waves enter the pores or interstitial spaces within these materials, they induce vibrations in the internal air molecules; this process leads to the continuous dissipation of acoustic energy—converting it into thermal or other forms of energy—thereby achieving a sound-absorbing effect.

GCI sound absorption foam has the same characteristics and excellent noise insulator properties as rubber foam. It absolutely doesn’t absorb water & has no unlike polyurethane foam. It has a very low weight, oil and petrol resistant.
Lightweight, Waterproof: It is a waterproof light-weight thermal deadener with highly compressible closed cell foam formulation, it absolutely doesn’t absorb moisture and has no odor, and it’s flexible which make it easy to install with or without roller.
Widely Used: for car doors floor pan, roof, trunk,wheel arches, Boat and Golf Cart, such as hood, door, wheel arch, engine compartment, engine bays and body panels. It also fit for firewall, U type pipe, kitchen sink and computer case.
Easy to Installation: GCI sound absorption foam comes in a handy size which makes it easier to cut and install.
GCI provides OEM / ODM services supported by a professional design team serving global brands, offering one-on-one customization and branded packaging solutions

Application	Car Doors, Floor Pan, Roof, Trunk, Wheel Arches
Feature	Sound Insulation, Highly Effective Sound Absorption, Heat Insulation Eco-Friendly
Material	Black non-woven Fabric + Closed Cell Foam 6MM + Kraft paper (High Density Closed Cell Foam)
Type	Sound absorption foam
Function	Sound proof, shock proof, sound absorption
Specification	Customized
Thickness	6 mm(customize)
OEM/ODM	Accept
Butyl rubber	Black
Aluminum Foil Color	NO
Design Style	Traditional
Style	Modern Stylish
Model Number	SA-BN-6MM
Installation	Glue
Packing	35/50 tablets per box/box
Warranty	Supported by GCI’s professional after-sales team
After-sale Service	Online Technical Support
Project Solution Capability	Others
Place of Origin	Guangdong, China
Brand Name	Your logo

High-end material

high-quality aluminum foil and butyl rubber,efficient sound insulation and noise reduction

Environmental protection

Non toxic, odorless, volatile, and pollution-free

Self adhesive damping material

Excellent adhesion and simple construction

Excellent resilience

The damping layer is made of high-quality butyl rubber with good resilience and more obvious vibration suppression effect

Application: Car Doors, Floor Pan, Roof, Trunk, Wheel Arches

Car door: 1pieces/ one door, 6mm thick;

Roof: 2-3pieces, 6-10mm thick

Trunk: 7-8 pieces, 6mm thick.

Step 1

Decide which part of the car you want to soundproof first: doors, floor, roof, trunk or hood.Soundproofing of each individual part of the car has its own result and effects on the overall outcome. Therefore, for the most effective result, we recommend that you install soundproofing material on all of the above main parts of the car.

Step 2

On the Internet on special websites or forums, find a guide on how to disassem-ble the interior of your car and read it carefully. Now dismantle the trim of the part of the car that you want to insulate. Be careful when removing the interior trim, avoid breaking the fasteners! To do this, use a special clip remover.

Step 3

After removing the interior trim, check what the standard sound insulation is made of. If it is made of jute or other fibrous material, temporarily remove it and reinstallit as a second layer on top of GCI. If the standard sound insulation is made of hard bitumen plates,and it is damaged or unstuck, remove it and install GCl in its place. If the standard sound insulation of bitumen is not damaged, then stick GCI on top of it, having thoroughly cleaned and degreased the surface of the standard sound insulation.

Step 4

Thoroughly clean and degrease the surface of the body with a degreaser and a dry. clean cloth before installing the material. For successful installation, the surface has to be dry and clean! The material will not be fixed and will not last long when applied on a wet or dirty surface. We recommend that you carry out all work wearing gloves and air the room from time to time.

Who is GCI?

As a leading manufacturer who focused on Mid-to-High-End automotive sound deadening solutions, GCI AUDIO, founded on March 8, 2008, is a comprehensive manufacturing group integrating R&D, product design, production, sales, and global export. GCI headquartered in Guangzhou, China, GCI AUDIO operates a modern production base through its subsidiary Foshan Xingyuanda Technology Co., Ltd. (established in 2015).

Are you a manufacturer or a trader?

We are a Chinese top car sound deadening mat manufacturer and our factory is located in Foshan. Our Foshan sound deadening factory covers over 6,000 square meters and is equipped with advanced production facilities, including high-value internal mixers, extrusion machines, laminating machines, printing equipment, and cutting lines. Welcome to visit our factory!

Do you have any international certifications?

We have passed ISO 9001, CE, Reach, RoHS, SGS and other certifications, and meet the mainstream standards of Europe, America, the Middle East and Asia.

What is the technical background of your team?

GCI founder, Ellien, a visionary with over 20 years of deep-seated expertise in the automotive acoustic industry.10-person R&D team (5 senior engineers) + 50-person production team, with an average of 8 years of experience and 100% certification rate.

Where are your main markets?

Asia (Japan, South Korea, Southeast Asia), Europe and America (Germany, the United States, Canada), the Middle East (UAE, Saudi Arabia), and more than 50 countries.

What is your product range?

We specialize in the development and manufacturing of mid-to-high-end automotive vibration damping, sound insulation, sound absorption, and thermal insulation materials, providing comprehensive solutions for vehicle noise control and audio upgrade applications.

What is the minimum order quantity (MOQ)?

10 set

How long does the custom development process take?

We support custom extrusion products. The usual process has 4 steps: demand confirmation → 3D design/proofing → test certification → mass production (cycle 3-8 weeks).

How long is the sample delivery cycle?

3 days for stock materials, 7-10 days for new formulas (including performance test reports)

Can you provide third-party test samples?

We can send them to SGS/Intertek and other institutions, and the cost is borne by the customer (about $300/item).

How much is it?

The price is determined by the quantity, material, processing method, size and other factors. In addition, due to our continuous technological innovation, the prices of some of our products are extremely competitive, please contact us to quote.
