Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper

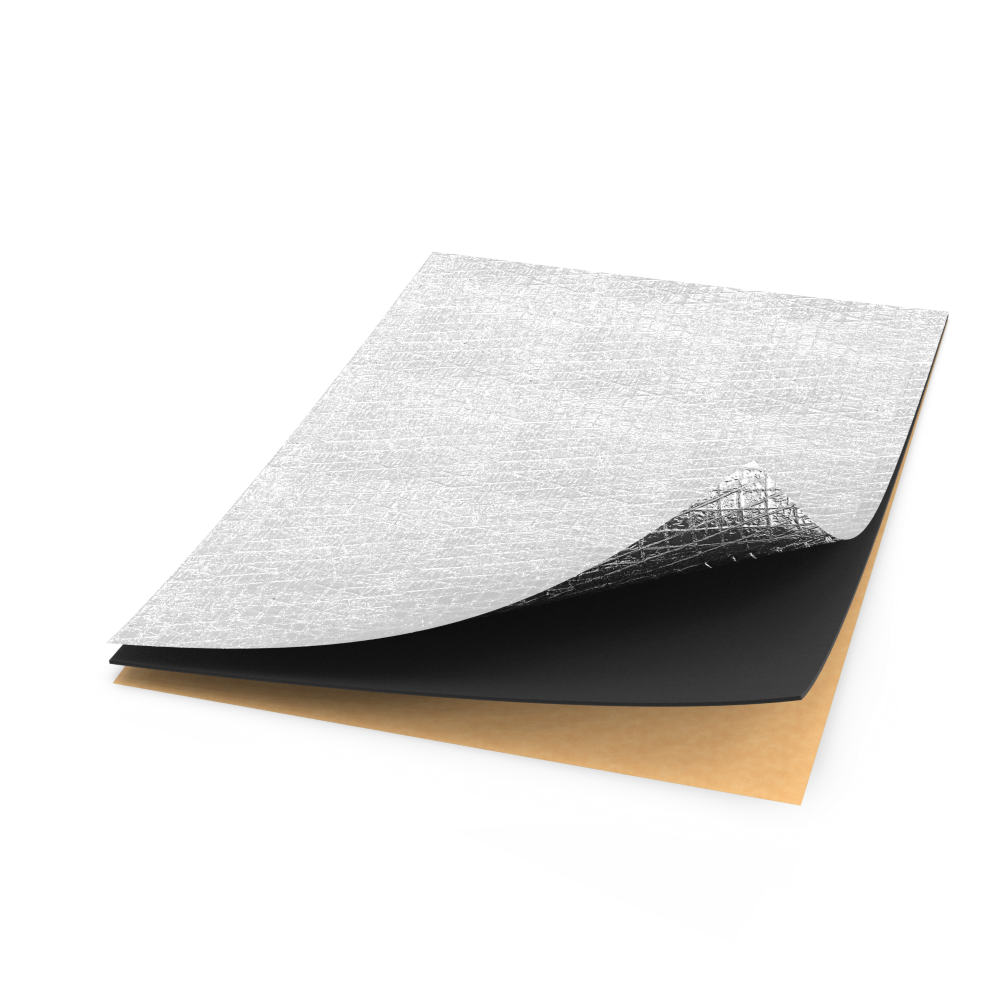

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper

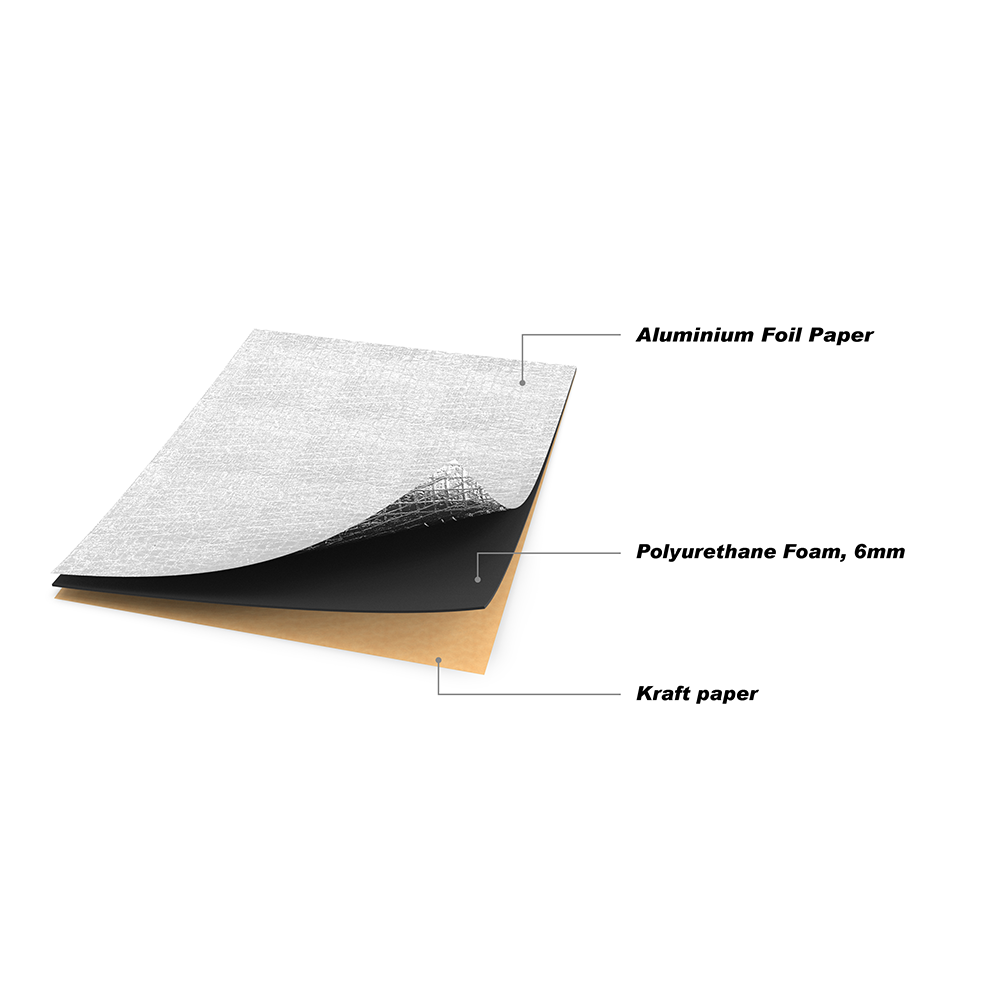

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper - Image 2

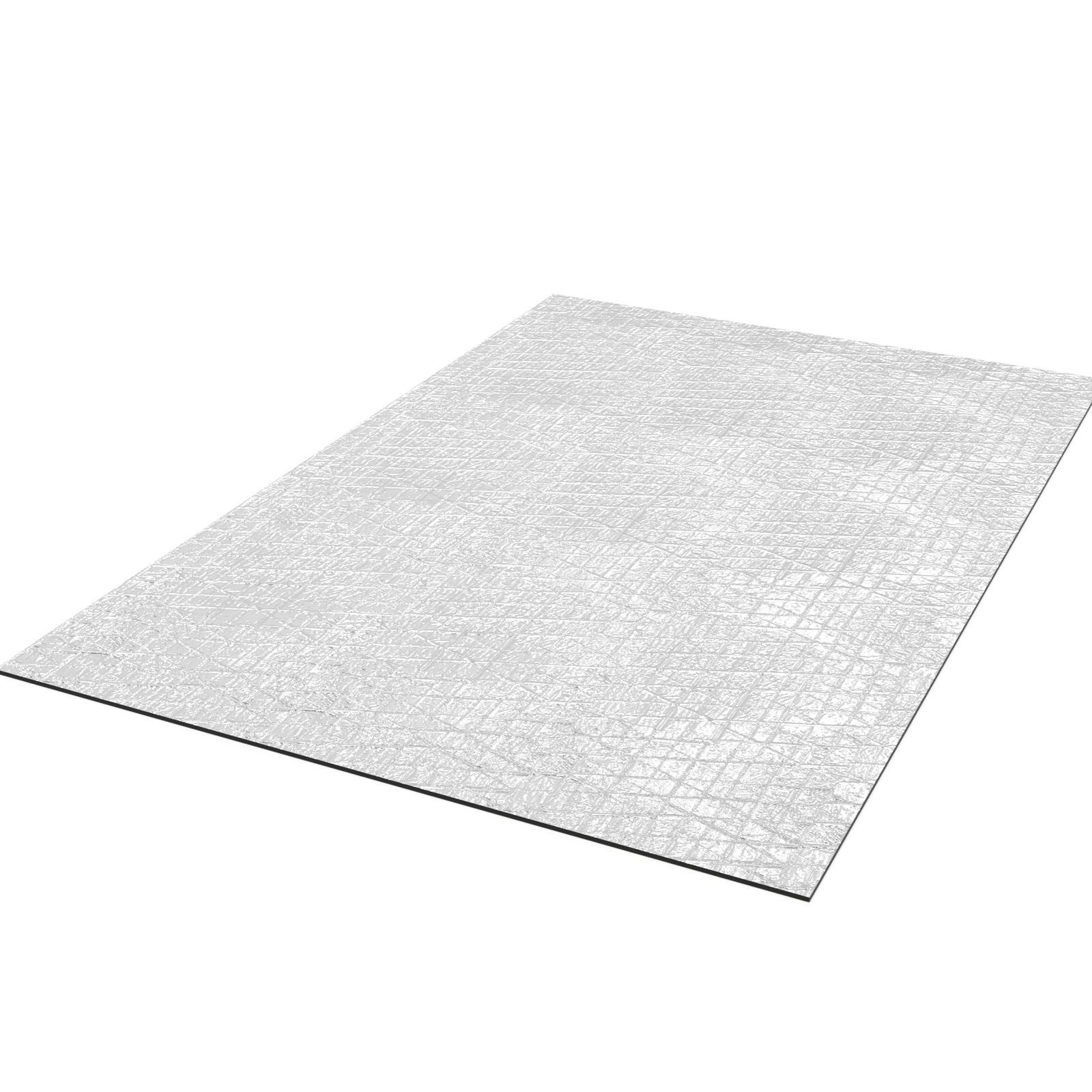

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper - Image 3

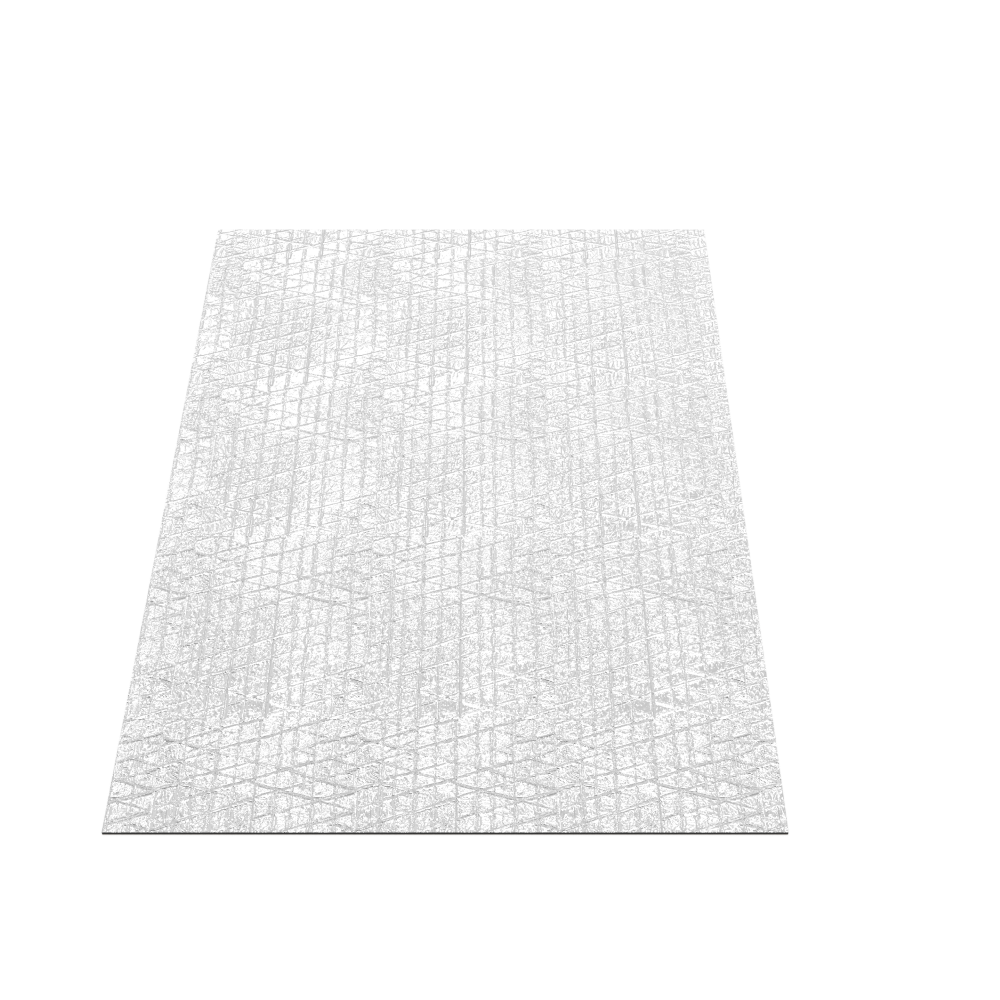

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper - Image 4

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper

Layer 1: Aluminium Foil Paper

Layer 2: Closed Cell Foam, 6mm

Layer 3: Kraft paper

Size: 1000 mm*1400 mm

Total Thickness: 6mm

Unit: Roll

Installation location: Roof, Engine Hood, Firewall

Logo: Printing Your Brand Logo

SKU HD-AF Category: Tags: , ,
Need Help ?

Speak to our Experts directly via email or WhatsApp now

Email to me
Talk to me
Share:

Model: HD-AF

Heat Insulation Foam For Car Hoodliner Aluminium Foil Paper

Layer 1: Aluminium Foil Paper

Layer 2: Closed Cell Foam, 6mm

Layer 3: Kraft paper

Size: 1000 mm*1400 mm

Total Thickness: 6mm

Unit: Roll

Installation location: Roof, Engine Hood, Firewall

Logo: Printing Your Brand Logo

Need Help ?

Speak to GCI expert directly now

Contact
Follow:
Facebook Icon-instagram-2 Linkedin Vk

CGI Aluminium Foil Paper Heat Insulation: Effectively blocks 98% of radiant heat transfer. Car sound deadening heat insulation foam is a very versatile insulation material with excellent thermal barrier properties that will block engine, exhaust, & summer heat, ensuring your vehicle stays cooler in the summer and warmer in the winter, making your ride more pleasant.

  • GCI Automotive Aluminium Foil Paper heat insulation is a waterproof lightweight thermal deadener with a highly compressible closed-cell foam formulation, it absolutely doesn’t absorb moisture and has no odor
  • Lightweight, Waterproof: It is a waterproof light-weight thermal deadener with highly compressible Sound-Absorbing White Cotton formulation, it absolutely doesn’t absorb moisture and has no odor, and it’s flexible which make it easy to install with or without roller.
  • Widely Used: The Aluminium Foil Paper heat insulation foam mat can be applied to external partitions, firewalls, hoods, engine compartments, engine compartments, trunks, wheel arches, body panels, load floors, and internal partitions under the seat floor.
  • Easy to Installation: GCI Aluminium Foil Paper heat insulation foam comes in handy size sheets which make it easier in terms of the cutting and installation process and it’s flexible which makes it easy to install with or without a roller.
  • GCI provides OEM / ODM services supported by a professional design team serving global brands, offering one-on-one customization and branded packaging solutions
ApplicationRoof, Engine Hood, Firewall
FeatureHeat Insulation, Sound Insulation, Highly Effective Sound Absorption, Heat Insulation Eco-Friendly
MaterialAluminium Foil Paper+ Closed Cell Foam + Kraft paper
TypeHeat insulation foam mat
FunctionHeat insulation,Sound proof, shock proof, sound absorption
Specification1000mm*1400mm*6mm
Thickness6mm(customize)
OEM/ODMAccept
Butyl rubberBlack
Aluminum Foil ColorSliver
Design StyleTraditional
StyleModern Stylish
Model NumberHD-AF
InstallationGlue
Packing1 Pcs / Color Box 12 Pcs / CTN
WarrantySupported by GCI’s professional after-sales team
After-sale ServiceOnline Technical Support
Project Solution CapabilityOthers
Place of OriginGuangdong, China
Brand NameYour logo
100um
Class B1 flame retardant,

High-end material

high-quality aluminum foil and butyl rubber,efficient sound insulation and noise reduction

Environmental protection
Non toxic, odorless, volatile, and pollution-free

Environmental protection

Non toxic, odorless, volatile, and pollution-free

Self adhesive damping material
Excellent adhesion and simple construction

Self adhesive damping material

Excellent adhesion and simple construction

Excellent resilience
The damping layer is made of high-quality butyl rubber with good resilience and more obvious vibration suppression effect

Excellent resilience

The damping layer is made of high-quality butyl rubber with good resilience and more obvious vibration suppression effect

Application: Roof, Engine Hood, Firewall

Car roof: 2-3 pieces 8mm

Roof: 2-3 pieces

Firewall: 6-8 pieces

Step 1

Decide which part of the car you want to soundproof first: doors, floor, roof, trunk or hood.Soundproofing of each individual part of the car has its own result and effects on the overall outcome. Therefore, for the most effective result, we recommend that you install soundproofing material on all of the above main parts of the car.

Step 2

On the Internet on special websites or forums, find a guide on how to disassem-ble the interior of your car and read it carefully. Now dismantle the trim of the part of the car that you want to insulate. Be careful when removing the interior trim, avoid breaking the fasteners! To do this, use a special clip remover.

Step 3

After removing the interior trim, check what the standard sound insulation is made of. If it is made of jute or other fibrous material, temporarily remove it and reinstallit as a second layer on top of GCI. If the standard sound insulation is made of hard bitumen plates,and it is damaged or unstuck, remove it and install GCl in its place. If the standard sound insulation of bitumen is not damaged, then stick GCI on top of it, having thoroughly cleaned and degreased the surface of the standard sound insulation.

Step 4

Thoroughly clean and degrease the surface of the body with a degreaser and a dry. clean cloth before installing the material. For successful installation, the surface has to be dry and clean! The material will not be fixed and will not last long when applied on a wet or dirty surface. We recommend that you carry out all work wearing gloves and air the room from time to time.
