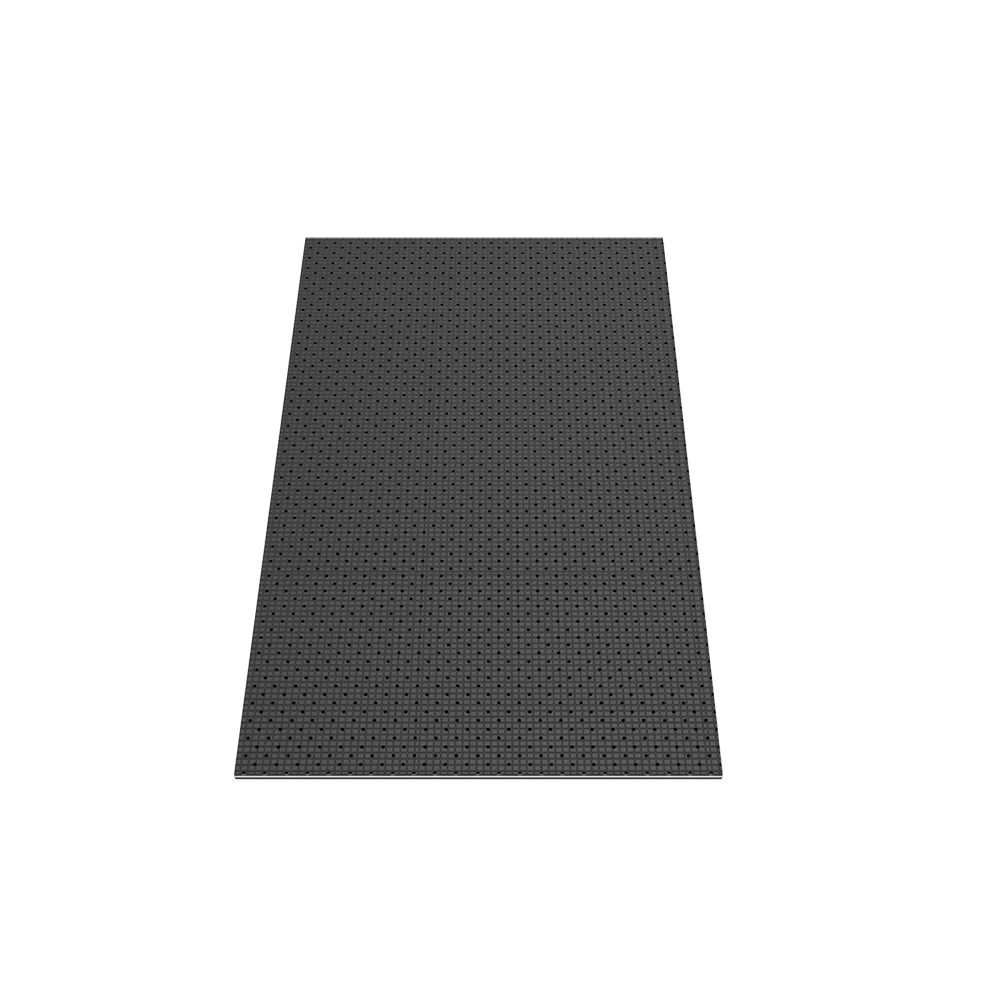

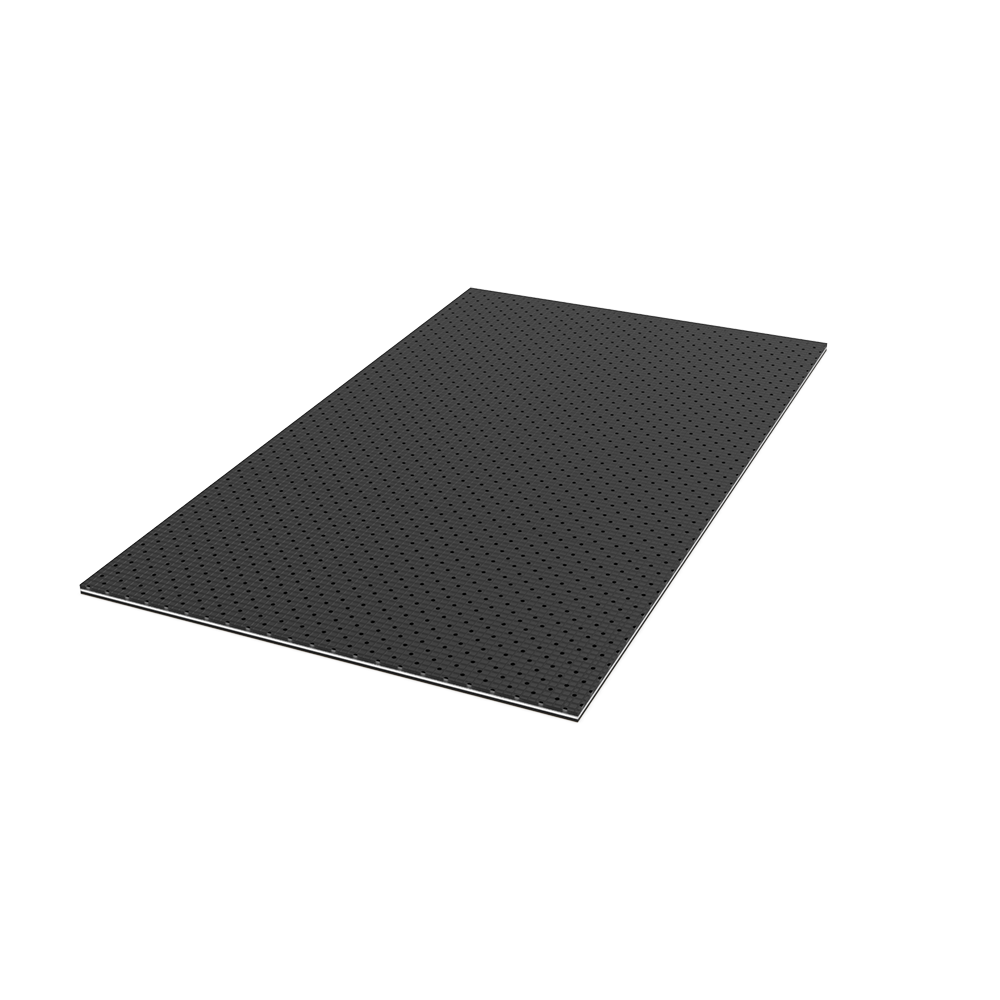

Sound Deadening Mat Low Frequency Self-Adhesive With Hole

Sound Deadening Mat Low Frequency Self-Adhesive With Hole
Sound Deadening Mat Low Frequency Self-Adhesive With Hole - Image 2
Sound Deadening Mat Low Frequency Self-Adhesive With Hole - Image 3
Sound Deadening Mat Low Frequency Self-Adhesive With Hole - Image 4

Sound Deadening Mat Low Frequency Self-Adhesive With Hole

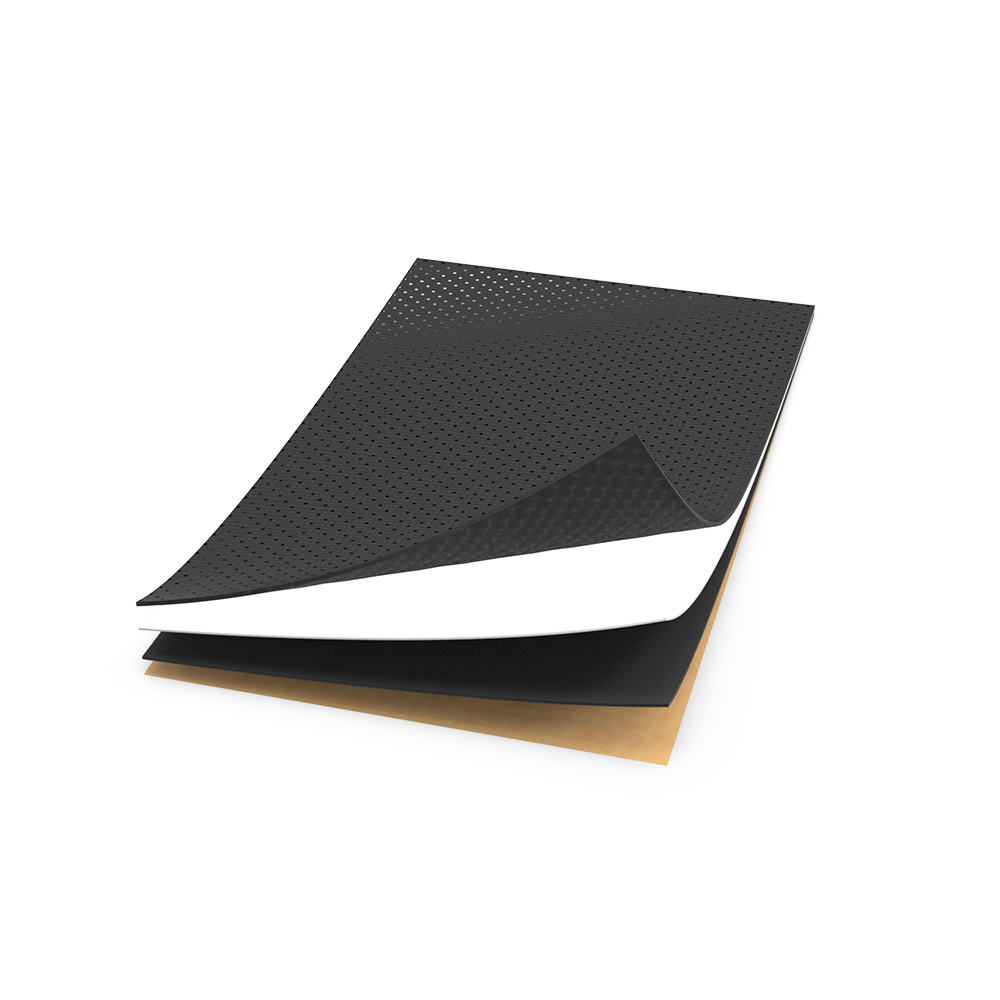

Layer 1: XPE with Hole, 4mm

Layer 2: Butyl rubber, 2mm

Layer 3: Closed Cell Foam, 3mm

Layer 4: Kraft paper

Total thickness: 9mm

Size: 460mm*800mm*9.0mm

Installation location: Car floor Pan

Logo: Printing Your Brand Logo

SKU SD-LMH-Z-9MM Category: Tags: , , , ,
Need Help ?

Speak to our Experts directly via email or WhatsApp now

Email to me
Talk to me
Share:

Model: SD-LMH-Z

Sound Deadening Mat Low Frequency Self-Adhesive With Hole

Layer 1: XPE with Hole, 4mm

Layer 2: Butyl rubber, 2mm

Layer 3: Closed Cell Foam, 3mm

Layer 4: Kraft paper

Total thickness: 9mm

Size: 460mm*800mm*9.0mm

Installation location: Car floor Pan

Logo: Printing Your Brand Logo

Need Help ?

Speak to GCI expert directly now

Contact
Follow:
Facebook Icon-instagram-2 Linkedin Vk
  • The low frequency king butyl rubber sound deadening mat with hole is specifically designed for soundproofing vehicle floors and trunks, and is highly effective at eliminating low-frequency vibrations. The 3 mm thick closed-cell foam effectively absorbs high-frequency airborne noise that traditional sound deadening materials can’t eliminate — such as engine noise through the firewall, road noise from the floor, and vibration through the trunk.
  • Perfect for use under carpet, on the firewall, and in the trunk, this thicker foam layer delivers superior noise absorption and thermal insulation, especially when used with GCI PRO as a base layer. The result is a solid, luxurious ride with less vibration, heat, and fatigue.
  • With a pressure-sensitive adhesive (PSA) backing, installation is fast and hassle-free — no glue, prep, or special tools required.
  • Custom thick sound deadening foam for maximum airborne noise absorption.
  • Ideal for firewalls, vehicle floors (under carpet), and trunks.
  • Targets high-frequency noise traditional damping doesn’t block.
  • Reduces vibration, road noise, engine drone, and heat.
  • Peel-and-stick PSA backing – quick and easy installation.
  • Delivers a quieter, more refined ride in any vehicle.
ApplicationCar floor
FeatureSound Insulation, Highly Effective Sound Absorption, Eco-Friendly
MaterialXPE with Hole 4mm + Butyl rubber 2mm+Closed Cell Foam 3mm+Mono-silicon Kraft Pape
TypeSelf-Adhesive sound deadening mat
FunctionSound proof, shock proof, sound absorption
Specification9.0 mm*460 mm*800 mm
Thickness9.0 mm(customize)
OEM/ODMAccept
Butyl rubberBlack
Aluminum Foil ColorNO
Design StyleTraditional
StyleModern Stylish
Model NumberSD-LMH-Z-9MM
InstallationSelf-Adhesive Glue
Packing8 pieces / gift box(Folded) 16 pieces / outer box
WarrantySupported by GCI’s professional after-sales team
After-sale ServiceOnline Technical Support
Project Solution CapabilityOthers
Place of OriginGuangdong, China
Brand NameYour logo
100um
Class B1 flame retardant,

High-end material

high-quality aluminum foil and butyl rubber,efficient sound insulation and noise reduction

Environmental protection
Non toxic, odorless, volatile, and pollution-free

Environmental protection

Non toxic, odorless, volatile, and pollution-free

Self adhesive damping material
Excellent adhesion and simple construction

Self adhesive damping material

Excellent adhesion and simple construction

Excellent resilience
The damping layer is made of high-quality butyl rubber with good resilience and more obvious vibration suppression effect

Excellent resilience

The damping layer is made of high-quality butyl rubber with good resilience and more obvious vibration suppression effect

Application: Floor Pan

Floor: 10–20 pieces (depending on vehicle floor area); 7–9 mm

Step 1

Decide which part of the car you want to soundproof first: doors, floor, roof, trunk or hood.Soundproofing of each individual part of the car has its own result and effects on the overall outcome. Therefore, for the most effective result, we recommend that you install soundproofing material on all of the above main parts of the car.

Step 2

On the Internet on special websites or forums, find a guide on how to disassem-ble the interior of your car and read it carefully. Now dismantle the trim of the part of the car that you want to insulate. Be careful when removing the interior trim, avoid breaking the fasteners! To do this, use a special clip remover.

Step 3

After removing the interior trim, check what the standard sound insulation is made of. If it is made of jute or other fibrous material, temporarily remove it and reinstallit as a second layer on top of GCI. If the standard sound insulation is made of hard bitumen plates,and it is damaged or unstuck, remove it and install GCl in its place. If the standard sound insulation of bitumen is not damaged, then stick GCI on top of it, having thoroughly cleaned and degreased the surface of the standard sound insulation.

Step 4

Thoroughly clean and degrease the surface of the body with a degreaser and a dry. clean cloth before installing the material. For successful installation, the surface has to be dry and clean! The material will not be fixed and will not last long when applied on a wet or dirty surface. We recommend that you carry out all work wearing gloves and air the room from time to time.

Who is GCI?

As a leading manufacturer who focused on Mid-to-High-End automotive sound deadening solutions, GCI AUDIO, founded on March 8, 2008, is a comprehensive manufacturing group integrating R&D, product design, production, sales, and global export. GCI headquartered in Guangzhou, China, GCI AUDIO operates a modern production base through its subsidiary Foshan Xingyuanda Technology Co., Ltd. (established in 2015).

Are you a manufacturer or a trader?

We are a Chinese top car sound deadening mat manufacturer and our factory is located in Foshan. Our Foshan sound deadening factory covers over 6,000 square meters and is equipped with advanced production facilities, including high-value internal mixers, extrusion machines, laminating machines, printing equipment, and cutting lines. Welcome to visit our factory!

Do you have any international certifications?

We have passed ISO 9001, CE, Reach, RoHS, SGS and other certifications, and meet the mainstream standards of Europe, America, the Middle East and Asia.

What is the technical background of your team?

GCI founder, Ellien, a visionary with over 20 years of deep-seated expertise in the automotive acoustic industry.10-person R&D team (5 senior engineers) + 50-person production team, with an average of 8 years of experience and 100% certification rate.

Where are your main markets?

Asia (Japan, South Korea, Southeast Asia), Europe and America (Germany, the United States, Canada), the Middle East (UAE, Saudi Arabia), and more than 50 countries.

What is your product range?

We specialize in the development and manufacturing of mid-to-high-end automotive vibration damping, sound insulation, sound absorption, and thermal insulation materials, providing comprehensive solutions for vehicle noise control and audio upgrade applications.

What is the minimum order quantity (MOQ)?

10 set

How long does the custom development process take?

We support custom extrusion products. The usual process has 4 steps: demand confirmation → 3D design/proofing → test certification → mass production (cycle 3-8 weeks).

How long is the sample delivery cycle?

3 days for stock materials, 7-10 days for new formulas (including performance test reports)

Can you provide third-party test samples?

We can send them to SGS/Intertek and other institutions, and the cost is borne by the customer (about $300/item).

How much is it?

The price is determined by the quantity, material, processing method, size and other factors. In addition, due to our continuous technological innovation, the prices of some of our products are extremely competitive, please contact us to quote.
